Introduction

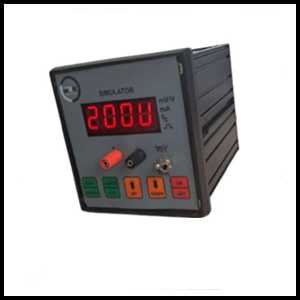

mV Simulator makes truly portable and highly reliable mV Simulator. The Simulator is designed to suit Instrumentation Lab as well as field calibration. This can be used as better tool for trouble shooting and confirmation of instrument. This can be used for many types of process control Instruments.
Hence very useful for Commissioning, Quality assurance, Routing Maintenance.
Features
► Hand held, Battery operated, Portable Source mV
► Typical Accuracy 0.1% ± 1 digit
► mV Simulator – Independent Calibration for mV
► Typical Accuracy 0.1%
Technical SpecificationmV Simulator suppliers
► Power Supply : Two batteries of 9 V, Size (Optional) Battery Eliminator for 230VAC Operation for mV Simulator.
► Indication : 4 ½ digit LCD with battery Low, Over range & Polarity IndicationmV Simulator
► Operating Temp. : 0 to 50 ⁰ C for mV Simulator suppliers
► Effect of Temp. Change : 0.002% per Deg. C ref 25⁰ C
► Humidity : Maximum 90% Rh non-condensing
► Battery Life : 30 Hrs in case of continuous operation for full Voltage output with Standard battery for mV Simulator.
► Storage Temp. : 0 to 70⁰ C
► Size : 170 (H) * 90 (W) * 45 (D)
► Weight :1 Kg approximate
Functional Description
- Power ON: This switch powers the instrument when switched “ ON”
- Mode: Source (Generation). mV Simulator suppliers
- Battery Eliminator : (Optional) For mV Simulator this facility is provided in the Simulator to suit the operation on 230Vac 50 Hz ± 10%. As soon as you connect the eliminator Socket, batteries get disconnected automatically & vice versa.
- Battery Replacement: When the “ Low Bat” Indication appears on DPM, the discharged batteries must be replaced, otherwise the accuracy will not be achieved. For replacing the battery remove the side bottom plate & then slide out the bottom plate on which the battery is firmly placed.
- mV Simulator: Can be calibrated easily. Remove the top plate. For mV Simulator suppliers potentiometers for Zero and span are easily accessible.
ApplicationmV Simulator suppliers
- For calibration of process control instruments and systems for various industries such as cement, Chemicals, Dyestuff, Paint, Drugs, Pharmaceuticals, Sugar, Paper, Glass, Food Industries, Steel, Synthetics, Auto, Air Conditioning and Refrigeration. mV Simulator suppliers
- As fault fault-finding tool.
- Quality Assurance tool for ISO 9000, and QS 2000 companies for control of inspection & measurement.
