Intraduction

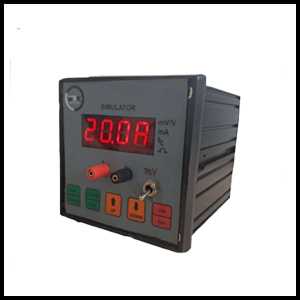

SBK Instrumentation makes a truly portable & highly reliable mV / mA Simulator. This can be used for many types of Process Control instruments. This simulator is ideal for Field calibration and hence very useful for commissioning. Quality Assurance, routine Maintenance & Troubleshooting.
features
- Hand-held battery operated.
- Independent calibration for mV / mA
- Typical accuracy is 0.1%.
Technical Specification –
- Power Supply: Two batteries of 9V size PP3 (Optional battery eliminator for 230 V AC)
- Indication: 41/2 digit LCD with battery Low Over – range & Polarity indication
- Operation Temp: 0 to 50°C
- Humidity: max 90% Rh non-condensing.
- Battery Life: 6 Hours in case of continuous use of mA & 30 hours in case of continuous use of mV.
- Storage Temp : 0 to 70°C.
- Size 105(H) * 90 (W) * 45 (D) mm
- Weight: ½ kg approx…
