Introduction

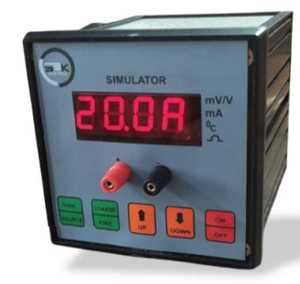

SBK Instrumentation makes a truly portable and highly reliable mA Simulator which can be used for mA Source and Sink facility is built in. The Simulator is designed to suit the Instrumentation Lab as well as field calibration. This can be used as a better tool for troubleshooting and confirmation of instruments. Hence, it is very useful for Commissioning, Quality assurance, and Routing Maintenance.
Features
► Source mA and Sink mA as per requirement
► Typical Accuracy 0.2% ± 1 digit
► Operation on 230Vac
► Maximum load 500 ohm
► mA Output range 0-25 mA
► mA Measurement Range 0-19.99mA
Technical specification –
► Power Supply 230 V AC 50 Hz ± 10%
► Indication 3 ½ digit 0.5” height Red LED
► Operating Temp. 0 to 50 ⁰ C
► Effect of Temp. Change 0.002% per Deg. C ref 25⁰ C
► Humidity Maximum 90% Rh non condensing
► Storage Temp. 0 to 70⁰ C
► Size 96 (W) * 96 (H) * 125 (D)
► Weight 1 Kg approximate
Functional Description –
- Mode: Source (Generation) or Sink (Measurement) with Toggle switch located on the back plate.
- mA Simulator: Can be calibrated easily. Potentiometers for Zero and Span are easily accessible.
Application –
►For calibration of process control instruments and systems for various industries such as cement, Chemicals, Dyestuff, Paint, Drugs, Pharmaceuticals, Sugar, Paper, Glass, Food Industries, Steel, Synthetics, Auto, Air Conditioning and Refrigeration.
►As fault fault-finding tool.
►Quality Assurance tool for ISO 9000, and QS 2000 companies for control of inspection & measurement.
