Introduction

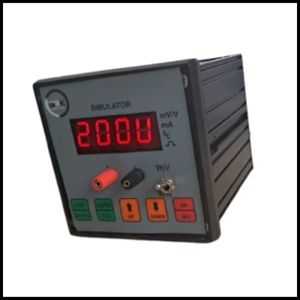

SBK Instrumentation makes truly portable and highly reliable mV Source facility. The Simulator is designed to suit Instrumentation Lab as well as field calibration. This can be used as better tool for trouble shooting and confirmation of instrument. Hence very useful for Commissioning, Quality assurance, Routing Maintenance.
Features – RTD Simulator manufacturers
- Source mV as per requirement
- Keypad Operation
- Typical Accuracy 0.1% ± 1 digit
- Operation on 230Vac
- Maximum load500 ohms
- mV Output range 0-200mV
Technical Specification – – RTD Simulator manufacturers
- Power Supply: 230 V AC 50 Hz ± 10%
- Indication: 4 ½ digit 0.5” height Red LED
- Operating Temp: 0 to 50 ⁰ C
- Effect of Temp. Change: 0.001% per Deg. C ref 25⁰ C
- Humidity: Maximum 90% Rh noncondensing
- Storage Temp: 0 to 70⁰ C
- Size : 96 (W) * 96 (H) * 100 (D)
- Weight : 1 Kg approximate
Specification –
| Function | Range | Resolution | Accuracy | Load |
|---|---|---|---|---|
| Source | ||||
| mV | 0-200 | 200 mV | 0.1 % ±1 digit | 500 Ω |
Functional Description –
- Mode : Source (Generation) with Keypad.
- mV Simulator : Can be calibrated easily through Keypad.
Application – Simulator
- For calibration of process control instruments and systems
for various industries such as cement, Chemicals, Dyestuff,
Paint, Drugs, Pharmaceuticals, Sugar, Paper, Glass,
Food Industries, Steel, Synthetics, Auto, Air Conditioning
and Refrigeration. - As fault finding tool.
- Quality Assurance tool for ISO 9000, QS 2000 companies
for control of inspection & measurement.
